WEEK 15

Quadratic Probing

• \(F(i)\) is a quadratic function of \(i\), such as \(F(i)=i^2\).

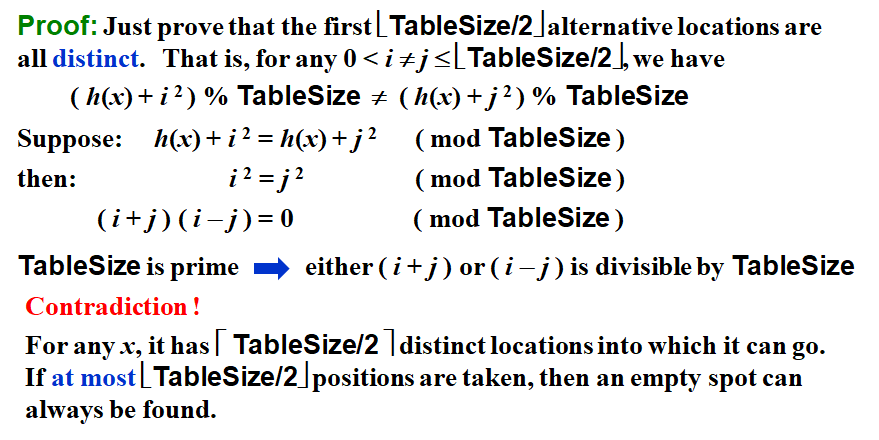

[Theorem] If quadratic probing is used, and the table size is prime, then a new element can always be inserted if the table is at least half empty.

Note : If the table size is a prime of the form \(4k + 3\), then the quadratic probing \(f(i) = \pm i^2\) can probe the entire table.

HashTable InitializeTable(int TableSize)
{
    HashTable H;
    int i;
    if(TableSize < MinTableSize)
    {
        Error("Table size too small");
        return NULL;
    }
    /*Allocate table*/
    H = malloc(sizeof(struct HashTbl));
    if(H == NULL)
        Fatal Error("Out of space!!!");
    H->TableSize = NextPrime(TableSize);

    /*Allocate array of Cells*/
    H->TheCells = malloc(sizeof(Cell)*H->TableSize);
    if(H->TheCells == NULL)
        FatalError("Out of space!!!");

    for(i = 0; i < H->TableSize; i++)
        H->TheCells[ i ].Info = Empty;
    return H;
}

Position Find(ElementType Key, HashTable H)
{
    Position CurrentPos;
    int CollisionNum;
    CollisionNum = 0;
    CurrentPos = Hash(Key, H->TableSize);
    while(H->TheCells[ CurrentPos ].Info != Empty &&
          H->TheCells[ CurrentPos ].Element != Key)
    {
        CurrentPos += 2*++CollisionNum-1;
        if (CurrentPos >= H->TableSize)
            CurrentPos -= H->TableSize;   /*Faster than mod*/
    }
    return CurrentPos;
}

void Insert(ElementType Key, HashTable H)
{
    Position Pos;
    Pos = Find(Key, H);
    if (H->TheCells[ Pos ].Info != Legitimate)
    { /*OK to insert here*/
        H->TheCells[ Pos ].Info = Legitimate;
        H->TheCells[ Pos ].Element = Key; /*Probably need strcpy*/
    }
}

Note :

• Insertion will be seriously slowed down if there are too many deletions intermixed with insertions.
• Although primary clustering is solved, secondary clustering occurs, that is, keys that hash to the same position will probe the same alternative cells.

Double Hashing

• \(f(i)=i*hash_2(x)\)
• \(hash_2(x)\not\equiv 0\)
• make sure that all cells can be probed
• \(hash_2(x)=R-(x\%R)\) with \(R\) a prime smaller than TableSize, will work well.

Note :

• If double hashing is correctly implemented, simulations imply that the expected number of probes is almost the same as for a random collision resolution strategy.
• Quadratic probing does not require the use of a second hash function and is thus likely to be simpler and faster in practice.

---

8.5 Rehashing

• Build another table that is about twice as big.
• Scan down the entire original hash table for non-deleted elements.
• Use a new function to hash those elements into the new table.
• When to rehash
• As soon as the table is half full
• When an insertion fails
• When the table reaches a certain load factor

Note : Usually there should have been N/2 insertions before rehash, so O(N) rehash only adds a constant cost to each insertion. However, in an interactive system, the unfortunate user whose insertion caused a rehash could see a slowdown.

HashTable Rehash(HashTable H)
{
    int i, OldSize;
    Cell *OldCells;
    OldCells = H->TheCells;
    OldSize = H->TableSize;

    /*Get a new, empty table*/
    H = InitializeTable(2*OldSize);
    /*Scan through old table, reinserting into new*/
    for(i = 0; i < OldSize; i++)
        if(OldCells[i].Info == Legitimate)
            Insert(OldCells[i].Element, H);
    free(OldCells);

    return H;
}

---
