WEEK 9

6.4 Shortest Path Algorithms

Given a digraph $G = ( V, E )$, and a cost function $c( e )$ for $e \in E( G )$.

The length of a path $P$ from source to destination is $\sum_{e_i\subset P} c(e_i)$(also called weighted path length).

Single-Source Shortest-Path Problem

Given as input a weighted graph, $G = ( V, E )$, and a distinguished vertex $s$, find the shortest weighted path from $s$ to every other vertex in $G$.

Note: If there is no negative-cost cycle, the shortest path from $s$ to $s$ is defined to be zero.

Unweighted Shortest Path

Breadth-first search 广度优先遍历

Implementation :

Table[ i ].Dist ::= distance from $s$ to $v_i$ /* initialized to be $\infin$ except for $s$ */
Table[ i ].Known ::= 1 if $v_i$ is checked; or 0 if not
Table[ i ].Path ::= for tracking the path /* initialized to be 0 */

C
void Unweighted( Table T )
{
    int CurrDist;
    Vertex V, W;
    for ( CurrDist = 0; CurrDist < NumVertex; CurrDist++ )
    {
        for ( each vertex V )
            if ( !T[ V ].Known && T[ V ].Dist == CurrDist )
            {
                T[ V ].Known = true;
                for ( each W adjacent to V )
                    if ( T[ W ].Dist == Infinity )
                    {
                        T[ W ].Dist = CurrDist + 1;
                        T[ W ].Path = V;
                    } /* end-if Dist == Infinity */
            } /* end-if !Known && Dist == CurrDist */
    }  /* end-for CurrDist */
}

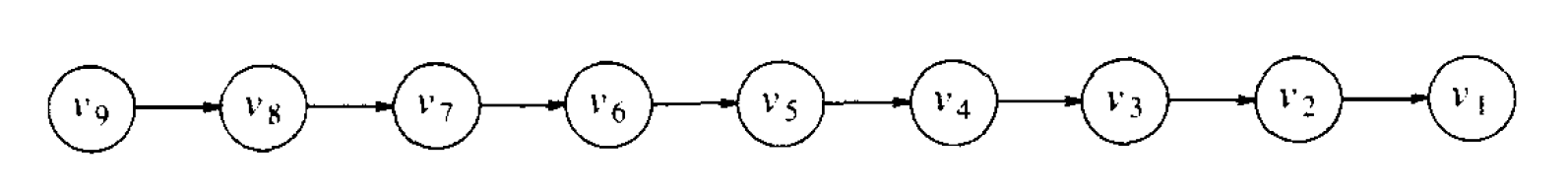

The worst case :

9-1 $$ T(N)=O(|V|^2) $$ Improvement :

C
void Unweighted( Table T )
{
    /* T is initialized with the source vertex S given */
    Queue Q;
    Vertex V, W;
    Q = CreateQueue( NumVertex );
    MakeEmpty( Q );
    Enqueue( S, Q ); /* Enqueue the source vertex */
    while ( !IsEmpty( Q ) )
    {
        V = Dequeue( Q );
        T[ V ].Known = true; /* not really necessary */
        for ( each W adjacent to V )
            if ( T[ W ].Dist == Infinity )
            {
                T[ W ].Dist = T[ V ].Dist + 1;
                T[ W ].Path = V;
                Enqueue( W, Q );
            } /* end-if Dist == Infinity */
    } /* end-while */
    DisposeQueue( Q ); /* free memory */
}

\[ T=O(|V|+|E|) \]

Weighted Shorted Path

Dijkstra’s Algorithm

Let S = { $s$ and $v_i$’s whose shortest paths have been found }
For any $u\notin S$, define distance [ u ] = minimal length of path { $s\rightarrow(v_i\in S)\rightarrow u$ }. If the paths are generated in non-decreasing order, then :
the shortest path must go through only $v_i\in S$
Greedy Method : $u$ is chosen so that distance[ u ] = min{ $w \notin S$ | distance[ w ] } (If $u$ is not unique, then we may select any of them)
if distance[$u_1$] < distance[$u_2$] and add $u_1$ into $S$, then distance [ $u_2$ ] may change. If so, a shorter path from $s$ to $u_2$ must go through $u_1$ and distance [ $u_2$ ] = distance [ $u_1$ ] + length(< $u_1$, $u_2$>).

C
typedef int Vertex;
struct TableEntry
{
    List Header; /*Adjacency list*/
    int Known;
    DistType Dist;
    Vertex Path;
};
/*Vertices are numbered from 0*/
#define NotAVertex (-1)
typedef struct TableEntry Table[ NumVertex ];

C
void InitTable(Vertex Start, Graph G, Table T)
{
    int i;
    ReadGraph(G, T); /* Read graph somehow */
    for(i = 0; i < NumVertex; i++)
    {
        T[ i ].Known = False;
        T[ i ].Dist = Infinity;
        T[ i ].Path = NotAVertex;
    }
    T[ Start ].dist = O;
}

C
/*Print shortest path to V after Dijkstra has run*/
/*Assume that the path exists*/
void PrintPath(Vertex V, Table T)
{
    if (T[ V ].Path != NotAVertex)
    {
        PrintPath(T[ V ].Path, T);
        printf(" to") ;
    }
    printf("%v", V) ; /* %v is pseudocode * /

C
void Dijkstra( Table T )
{
    Vertex V, W;
    for ( ; ; )
    {
        V = smallest unknown distance vertex;
        if ( V == NotAVertex ) break;
        T[ V ].Known = true;
        for ( each W adjacent to V )
            if ( !T[ W ].Known )
                if ( T[ V ].Dist + Cvw < T[ W ].Dist )
                {
                    Decrease( T[ W ].Dist to T[ V ].Dist + Cvw );
                    T[ W ].Path = V;
                } /* end-if update W */
    } /* end-for( ; ; ) */
}

Implementation 1

Simply scan the table to find the smallest unknown distance vertex.——$O(|V|)$
Good if the graph is dense

\[ T=O(|V|^2+|E|) \]

Implementation 2

堆优化
Keep distances in a priority queue and call DeleteMin to find the smallest unknown distance vertex.——$O(\log|V|)$
更新的处理方法
Method 1 : DecreaseKey——$O(\log|V|)$

$T=O(|V|\log|V|+|E|\log|V|)=O(|E|\log|V|)$
Method 2 : insert W with updated Dist into the priority queue

Must keep doing DeleteMin until an unknown vertex emerges

$T=O(|E|\log|V|)$ but requires $|E|$ DeleteMin with |E| space
Good if the graph is sparse

Improvements

Pairing heap
Fibonacci heap

Graphs with Negative Edge Costs

C
void WeightedNegative( Table T )
{
    Queue Q;
    Vertex V, W;
    Q = CreateQueue (NumVertex );
    MakeEmpty( Q );
    Enqueue( S, Q ); /*Enqueue the source vertex*/
    while ( !IsEmpty( Q ) )
    {
        V = Dequeue( Q );
        for ( each W adjacent to V )
        if ( T[ V ].Dist + Cvw < T[ W ].Dist )
        {
            T[ W ].Dist = T[ V ].Dist + Cvw;
            T[ W ].Path = V;
            if ( W is not already in Q )
                Enqueue( W, Q );
        } /*end-if update*/
    } /*end-while */
    DisposeQueue( Q ); /*free memory*/
}

Note : Negative-cost cycle will cause indefinite loop

\[ T=O(|V|\times|E|) \]

Acyclic Graphs

If the graph is acyclic, vertices may be selected in topological order since when a vertex is selected, its distance can no longer be lowered without any incoming edges from unknown nodes.
$T=O(|E|+|V|)$ and no priority queue is needed.

AOE(Activity on Edge) Networks

All-Pairs Shortest Path Problem

For all pairs of $v_i$ and $v_j$ ( $i\neq j$ ), find the shortest path between.

Method 1

Use single-source algorithm for $|V|$ times.
$T=O(|V|^3)$, works fast on sparse graph.

Method 2

动态规划
$O(|V|^3)$ algorithm given in Chapter 10, works faster on dense graphs.
