WEEK 8

6 Graph Algorithms

6.1 Definitions

• \(G( V, E )\) where \(G\) = graph, \(V = V( G )\) = finite nonempty set of vertices, and \(E = E( G )\) = finite set of edges.

Undirected graph

• \(( v_i , v_j ) = ( v_j , v_i )\) = the same edge.

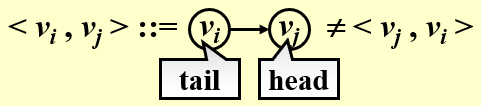

Directed graph(diagraph)

Restrictions

• Self loop is illegal.
• Multigraph is not considered.

Complete graph

• A graph that has the maximum number of edges.

Adjacent

Subgraph

\[ G'\subset G=V(G')\subseteq V(G) \&\& E(G')\subseteq E(G) \]

Path

• Path(\(\subset G\)) from \(v_p\) to \(v_q\) = \(\{v_p,v_{i1},v_{i2},\cdots,v_{in},v_q\}\) such that \((v_p,v_{i1}),(v_{i1},v_{i2}),\cdots,(v_{in},v_q)\) belong to \(E(G)\)

Length of a path

• number of edges on the path

Simple path

• \(v_{i1},v_{i2},\cdots,v_{in}\) are distinct.

Cycle

• simple path with \(v_p=v_q\)

Connected

• \(v_i\) and \(v_j\) in an undirected \(G\) are connected if there is a path from \(v_i\) to \(v_j\) (and hence there is also a path from \(v_j\) to \(v_i\))
• An undirected graph \(G\) is connected if every pair of distinct \(v_i\) and \(v_j\) are connected

(Connected) Component of an undirected G

• the maximal connected subgraph

Tree

• a graph that is connected and acyclic(非循环的)

DAG

• a directed acyclic graph

Strongly connected directed graph G

• For every pair of \(v_i\) and \(v_j\) in \(V( G )\), there exist directed paths from \(v_i\) to \(v_j\) and from \(v_j\) to \(v_i\).
• If the graph is connected without direction to the edges, then it is said to be weakly connected

Strongly connected component

• the maximal subgraph that is strongly connected

Degree

• number of edges incident to v

• For a directed G, we have in-degree and out-degree.

• Given G with \(n\) vertices and \(e\) edges, then $$ e=(\sum_{i=0}^{n-1}d_i)/2\quad where\quad d_i=degree(v_i) $$

---

6.2 Representation of Graphs

Adjacency Matrix

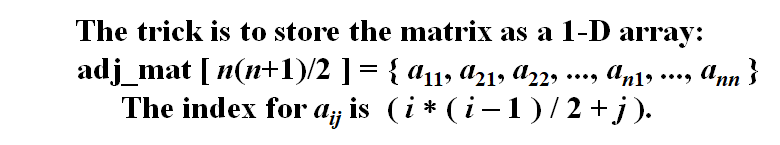

Note : If G is undirected, then adj_mat[][] is symmetric. Thus we can save space by storing only half of the matrix.

• This representation wastes space if the graph has a lot of vertices but very few edges.

• To find out whether or not \(G\) is connected, we’ll have to examine all edges. In this case \(T\) and \(S\) are both \(O( n^2 )\).

Adjacency Lists

• Replace each row by a linked list

Note : The order of nodes in each list does not matter.

• For undirected \(G\), \(S\) = \(n\) heads + \(2e\) nodes = \((n+2e)\) ptrs + \(2e\) ints
• Degree(i) = number of nodes in graph[i](if \(G\) is undirected)
• \(T\) of examine \(E(G)\) = \(O(n+e)\)

Adjacency Multilists

• Sometimes we need to mark the edge after examine it, and then find the next edge.

Weighted Edges

• adj_mat [ i ] [ j ] = weight
• adjacency lists / multilists : add a weight field to the node

---

6.3 Topological Sort 拓扑排序 不是一种严格意义的排序算法

AOV activity on vertices Network 有向无环图

• digraph \(G\) in which \(V( G )\) represents activities and \(E( G )\) represents precedence relations
• Feasible AOV network must be a directed acyclic graph（DAG）.
• \(i\) is a predecessor of \(j\) = there is a path from \(i\) to \(j\)
• \(i\) is an immediate predecessor of \(j\) = \(< i, j > \in E( G )\). Then \(j\) is called a successor(immediate successor) of \(i\)

Partial order

• a precedence relation which is both transitive and irreflexive

Note : If the precedence relation is reflexive, then there must be an \(i\) such that \(i\) is a predecessor of \(i\). That is, \(i\) must be done before \(i\) is started. Therefore if a project is feasible, it must be irreflexive.

[Definition] A topological order is a linear ordering of the vertices of a graph such that, for any two vertices, \(i\), \(j\), if \(i\) is a predecessor of \(j\) in the network then \(i\) precedes \(j\) in the linear ordering.

Note : The topological orders may not be unique for a network.

/*Test an AOV for feasibility, and generate a topological order if possible*/
void Topsort( Graph G )
{
    int Counter;
    Vertex V, W;
    for ( Counter = 0; Counter < NumVertex; Counter++ )
    {
        V = FindNewVertexOfDegreeZero( );
        if ( V == NotAVertex ) //确认图中无环？
        {
            Error ( “Graph has a cycle” );
            break;
        }
        TopNum[ V ] = Counter; /* or output V */
        for ( each W adjacent to V )
            Indegree[ W ]––; //对所有前置选课要求有V的课程，在修之前必须修完的课少了一门
    }
}

\[ T=O(|V|^2+|E|) = O(|V|^2) \]

/*Improvment:Keep all the unassigned vertices of degree 0 in a special box (queue or stack)*/
void Topsort( Graph G )
{
    Queue Q;
    int Counter = 0;
    Vertex V, W;
    Q = CreateQueue( NumVertex );
    MakeEmpty( Q );
    for ( each vertex V )
        if ( Indegree[ V ] == 0 ) Enqueue( V, Q );
    while ( !IsEmpty( Q ) )
    {
        V = Dequeue( Q );
        TopNum[ V ] = ++Counter; /* assign next */
        for ( each W adjacent to V )
            if (––Indegree[ W ] == 0 ) Enqueue( W, Q );
    }  /* end-while */
    if ( Counter != NumVertex )
    Error( “Graph has a cycle” );
    DisposeQueue( Q ); /* free memory */
}

\[ T=O(|V|+|E|) \]

---

\(注意E的范围 最小 V 最大 |V|^2\)
