WEEK 7

5 The Disjoint Set

5.1 Equivalence Relations

[Definition] A relation R is defined on a set S if for every pair of elements (a, b), a, b \(\in\) S, a R b is either true or false. If a R b is true, then we say that a is related to b.

[Definition] A relation, ~, over a set, S, is said to be an equivalence relation over S if it is symmetric, reflexive, and transitive over S.

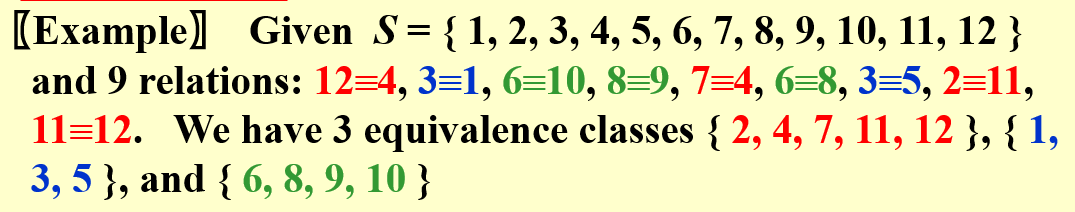

[Definition] Two members x and y of a set S are said to be in the same equivalence class if x ~ y.

关系的几种类型 自反关系（reflexive） 设 R是 A上的一个二元关系，若对于 A中的每一个元素 a， (a,a)都属于 R，则称 R为自反关系。

非自反关系（irreflexive） 设R是A上的关系。若对所有a∈A，均有(a，a)∈ R，则称R是A上的一个自反关系

对称关系（symmetric） 集合A上的二元关系R，对任何a，b∈A，当aRb时有bRa

非对称关系（asymmetric） 集合A上的二元关系R，对任何a，b∈A，当aRb时有bR a

反对称关系（antisymmetric）

---

5.2 The Dynamic Equivalence Problem

• Given an equivalence relation ~, decide for any a and b if a ~ b

Algorithm: (Union/Find)
{
  /* step 1: read the relations in */
    Initialize N disjoint sets;
    while ( read in a ~ b )
    {
      if ( !(Find(a) == Find(b)) )  /*Dynamic(on-line)*/
          Union the two sets;
    } /* end-while */
    /* step 2: decide if a ~ b */
    while ( read in a and b )
        if ( Find(a) == Find(b) )
          output( true );
        else
          output( false );
}

• Elements of the sets : \(1,2,3,\cdots,N\)
• Sets : \(S_1,S_2,\cdots\,and\,S_i\bigcap S_j=\emptyset\,(if\quad i\neq j)\)

• Operations :

• Union( \(i, j\) ) = Replace \(S_i\) and \(S_j\) by \(S=S_i\bigcup S_j\)

• Find( \(i\) ) = Find the set \(S_k\) which contains the element \(i\)

---

5.3 Basic Data Structure

Union( \(i, j\) )

• Make \(S_i\) a subtree of \(S_j\), or vice versa, that is to set the parent pointer of one of the roots to the other root.

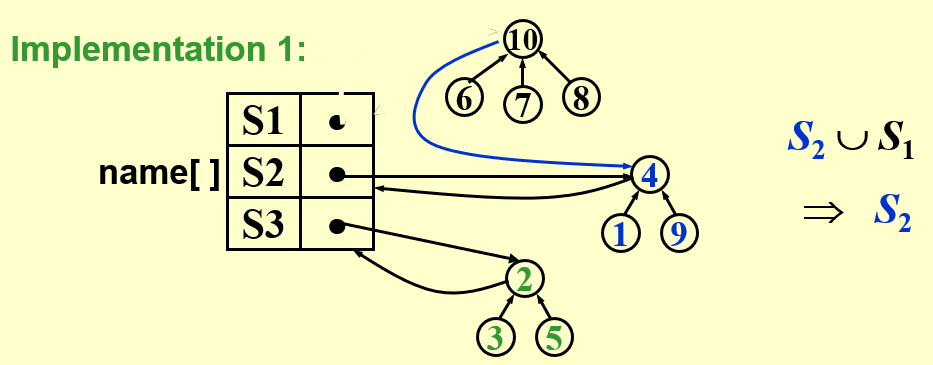

• Implementation 1 :

• Implementation 2 :

• The elements are numbered from 1 to N, hence they can be used as indices of an array.

• S[ element ] = the element’s parent

• Note : S[ root ] = 0 and set name = root index

• 数组初始化全部为0

void SetUnion(DisjSet S, SetType Rt1, SetType Rt2)
{
  S[Rt2] = Rt1;
}

Find( \(i\) )

• Implementation 1 :

• Implementation 2 :

SetType Find(ElementType X, DisjSet S)
{
  for ( ; S[X]>0; X=S[X]);
  return X;
}

Analysis

• Union and find are always paired. Thus we consider the performance of a sequence of union-find operations.

Algorithm using union-find operations:
{
    Initialize Si = { i }  for  i = 1, ..., 12 ;
    for ( k = 1; k <= 9; k++ )  /* for each pair i R j */
    {
        if ( Find( i ) != Find( j ) )
            SetUnion( Find( i ), Find( j ) );
    }
}

• Worst case : \(T(N)=\Theta(N^2)\)

---

5.4 Smart Union Algorithms

Union-by-Size

• Always change the smaller tree

• S[Root] = -size, initialized to be -1

• [Lemma] Let T be a tree created by union-by-size with N nodes, then \(height(T)\leq\lfloor\log_2N\rfloor+1\).

Proved by induction. Each element can have its set name changed at most \(\log_2N\) times.

• Time complexity of \(N\) Union and \(M\) Find operations is now \(O(N+M\log_2N)\).

/* Assumes Rootl and Root2 are roots*/
void SetUnion(DisjSet S, SetType Root1, SetType Root2)
{
    if (S[Root1] <= S[Root2])
    {
        S[Root1] += S[Root2];
        S[Root2] = Root1;
    }
    else
    {
        S[Root2] += S[Root1];
        S[Root1] = Root2;
    }
}

Union-by-Height

• Always change the shallow tree
• 保证所有的树的深度最多是\(O(logN)\)

/* Assumes Rootl and Root2 are roots*/
void SetUnion(DisjSet S, SetType Root1, SetType Root2)
{
    if ( S[Root2] < S[Root1])  /*Root2 is deeper set*/
        S[Root1] = Root2;      /*Make Root2 new root*/
    else
    {
        if (S[Root1] == S[Root2])  /*Same height*/
            S[Root1]--;
        S[Root2] = Root1;
    }
}

---

5.5 Path Compression

• 从X到Root的路径上的每一个结点都使它的父结点变成Root

SetType Find( ElementType X, DisjSet S )
{
    if ( S[ X ] <= 0 )
        return X;
    else
        return S[ X ] = Find( S[ X ], S );
}

SetType Find( ElementType X, DisjSet S )
{
    ElementType root, trail, lead;
    for ( root = X; S[ root ] > 0; root = S[ root ] );  /* find the root */
    for ( trail = X; trail != root; trail = lead )
    {
        lead = S[ trail ];
        S[ trail ] = root;
    }  /* collapsing */
    return root;
}

• Note : Not compatible with union-by-height since it changes the heights. Just take “height” as an estimated rank.

---

5.6 Worst Case for Union-by-Rank and Path Compression

[Lemma] Let \(T(M,N)\) be the maximum time required to process an intermixed sequence of \(M\geq N\) finds and \(N-1\) unions, then \(k_1M\alpha(M,N)\leq T(M,N)\leq k_2M\alpha(M,N)\) for some positive constants \(k_1\) and \(k_2\).

• Ackermann’s Function $$ A(i,j)=\left{ \begin{array}{rcl} 2^j && {i=1,j\geq1}\ A(i-1,2) && {i\geq2,j=1}\ A(i-1,A(i,j-1)) && {i\geq2,j\geq2}\ \end{array} \right. $$

$$ A(2,4)=2^{2^{2^{2^2}}}=2^{65536} $$

• \(\alpha(M,N)=min\{i\geq1|A(i,\lfloor M/N\rfloor)>\log N\}\leq O(\log^*N)\leq4\)

\(\log^*N\) (inverse Ackermann function) = number of times the logarithm is applied to \(N\) until the result \(\leq1\).

---

要求时间复杂度证明

5.7 Conclusion

一共有五种算法，注意看清题设

• No smart union

• Union-by-size

• Union-by-height

• Union-by-size + Path Compression

• Union-by-height + Path Compression

---
