WEEK 6

4 堆 Priority Queues (Heaps)

4.1 ADT Model

• Objects :A finite ordered list with zero or more elements.
• Operations :
• PriorityQueue Initialize( int MaxElements );
• void Insert( ElementType X, PriorityQueue H );
• ElementType DeleteMin( PriorityQueue H );
• ElementType FindMin( PriorityQueue H );

---

4.2 Implementations

Array

• Insertion — add one item at the end ~\(\Theta(1)\)

• Deletion — find the largest / smallest key ~\(\Theta(n)\)

​ remove the item and shift array ~\(O(n)\)

Linked List

• Insertion — add to the front of the chain ~\(\Theta(1)\)

• Deletion — find the largest / smallest key ~\(\Theta(n)\)

​ remove the item ~\(\Theta(1)\)

• Never more deletions than insertions

Ordered Array

• Insertion — find the proper position ~\(O(\log n)\)

​ shift array and add the item ~\(O(n)\)

• Deletion — remove the first / last item ~\(\Theta(1)\)

Ordered Linked List

• Insertion — find the proper position ~\(O(n)\)

​ add the item ~\(\Theta(1)\)

• Deletion — remove the first / last item ~\(\Theta(1)\)

Binary Search Tree

• Both insertion and deletion will take \(O(\log N)\) only.
• Only delete the the minimum element, always delete from the left subtrees.
• Keep a balanced tree
• But there are many operations related to AVL tree that we don't really need for a priority queue.

---

4.3 Binary Heap

Structure Property

[Definition] A binary tree with \(n\) nodes and height \(h\) is complete if its nodes correspond to the nodes numbered from \(1\) to \(n\) in the perfect binary tree of height \(h\).

• A complete binary tree of height \(h\) has between \(2^h\) and \(2^{h+1}-1\) nodes.

• \(h=\lfloor\log N\rfloor\)

• Array Representation : BT[n + 1] ( BT[0] is not used)

[Lemma]

1. \(index\,of\,parent(i)=\left\{ \begin{array}{rcl} \lfloor i/2\rfloor && {i\neq1}\\ None && {i=1}\\ \end{array} \right.\)
2. \(index\,of\,left\_child(i)=\left\{ \begin{array}{rcl} 2i && {2i\leq n}\\ None && {2i>n}\\ \end{array} \right.\)
3. \(index\,of\,right\_child(i)=\left\{ \begin{array}{rcl} 2i+1 && {2i+1\leq n}\\ None && {2i+1>n}\\ \end{array} \right.\)

PriorityQueue Initialize( int MaxElements )
{
    PriorityQueue H;
    if ( MaxElements < MinPQSize )
        return Error( "Priority queue size is too small" );
    H = malloc(sizeof( struct HeapStruct ));
    if ( H == NULL )
        return FatalError( "Out of space!!!" );
    /* Allocate the array plus one extra for sentinel */
    H->Elements = malloc(( MaxElements + 1 ) * sizeof( ElementType ));
    if ( H->Elements == NULL )
        return FatalError( "Out of space!!!" );
    H->Capacity = MaxElements;
    H->Size = 0;
    H->Elements[0] = MinData;  /* set the sentinel */
    return H;
}

Heap Order Property

[Definition] A min tree is a tree in which the key value in each node is no larger than the key values in its children (if any). A min heap is a complete binary tree that is also a min tree.

• We can declare a max heap by changing the heap order property.

Basic Heap Operations

1. Insertion

/*H->Element[ 0 ] is a sentinel that is no larger than the minimum element in the heap.*/
void Insert( ElementType X, PriorityQueue H )
{
 int i;
    if ( IsFull( H ))
    {
     Error( "Priority queue is full" );
     return;
    }
    for ( i = ++H->Size; H->Elements[ i/2 ] > X; i /= 2 )
     H->Elements[ i ] = H->Elements[ i/2 ]; /*Percolate up, faster than swap*/
    H->Elements[ i ] = X;
}

$$ T(N)=O(\log N) $$

1. DeleteMin

ElementType DeleteMin( PriorityQueue H )
{
    int i, Child;
    ElementType MinElement, LastElement;
    if ( IsEmpty( H ) )
    {
        Error( "Priority queue is empty" );
        return H->Elements[ 0 ];
    }
    MinElement = H->Elements[ 1 ];  /*Save the min element*/
    LastElement = H->Elements[ H->Size-- ];  /*Take last and reset size*/
    for ( i = 1; i * 2 <= H->Size; i = Child )  /*Find smaller child*/
    {
        Child = i * 2;
        if (Child != H->Size && H->Elements[Child+1] < H->Elements[Child])
             Child++;
        if ( LastElement > H->Elements[ Child ] )   /*Percolate one level*/
             H->Elements[ i ] = H->Elements[ Child ];
        else
         break;   /*Find the proper position*/
    }
    H->Elements[ i ] = LastElement;
    return MinElement;
}

$$ T(N)=O(\log N) $$

Other Heap Operations

• 查找除最小值之外的值需要对整个堆进行线性扫描

• DecreaseKey — Percolate up

• IncreaseKey — Percolate down

• Delete

• BuildHeap

将N 个关键字以任意顺序放入树中，保持结构特性，再执行下滤

for (i = N/2; i > 0; i--)
 PercolateDown(i);

$$ T(N)=O(N) $$

[Theorem] For the perfect binary tree of height \(h\) containing \(2^{h+1}-1\) nodes, the sum of the heights of the nodes is \(2^{h+1}-1-(h+1)\).

---

4.4 Applications of Priority Queues

Heap Sort

查找一个序列中第k小的元素

The function is to find the K-th smallest element in a list A of N elements. The function BuildMaxHeap(H, K) is to arrange elements H[1] ... H[K] into a max-heap.

ElementType FindKthSmallest ( int A[], int N, int K )
{   /* it is assumed that K<=N */
    ElementType *H;
    int i, next, child;

    H = (ElementType*)malloc((K+1)*sizeof(ElementType));
    for ( i = 1; i <= K; i++ ) H[i] = A[i-1];
    BuildMaxHeap(H, K);

    for ( next = K; next < N; next++ ) {
        H[0] = A[next];
        if ( H[0] < H[1] ) {
            for ( i = 1; i*2 <= K; i = child ) {
                child = i*2;
                if ( child != K && H[child+1] > H[child] ) child++;
                if ( H[0] < H[child] )
                    H[i] = H[child];
                else break;
            }
            H[i] = H[0];
        }
    }
    return H[1];
}

---

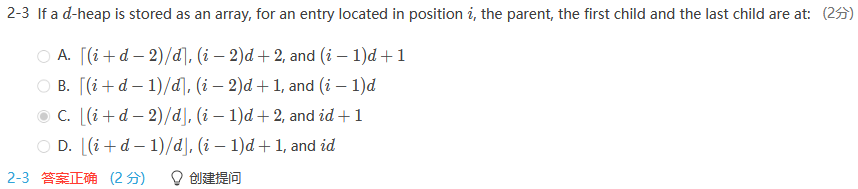

4.5 \(d\)-Heaps — All nodes have \(d\) children

Note :

• DeleteMin will take \(d-1\) comparisons to find the smallest child. Hence the total time complexity would be \(O(d \log_d N)\).
• 2 or /2 is merely *a bit shift**, but *d or /d is not.
• When the priority queue is too large to fit entirely in main memory, a d-heap will become interesting.

正确答案是4，注意“in the process”

---
