WEEK 5

• In a tree, the order of children does not matter. But in a binary tree, left child and right child are different.

Properties of Binary Trees

• The maximum number of nodes on level \(i\) is \(2^{i-1},i\geq1\).
• The maximum number of nodes in a binary tree of depth \(k\) is \(2^k-1,k\geq1\).
• For any nonempty binary tree, \(n_0 = n_2 + 1\) where \(n_0\) is the number of leaf nodes and \(n_2\) is the number of nodes of degree 2.

proof: 假设该二叉树总共有n个结点(\(n =n_0+n_1+n_2\))，则该二叉树总共会有n-1条边，度为2的结点会延伸出两条边，

同理，度为1的结点会延伸出一条边，则可列公式：$n-1 = 2n_2 + n_1 $，

合并两个式子可得：\(2n_2 + n_1 +1 =n_0 + n_1 + n_2\) ，则计算可知 \(n_0=n_2+1\)

---

3.3 Binary Search Trees

[Definition] A binary search tree is a binary tree. It may be empty. If it is not empty, it satisfies the following properties:

• 每个结点有一个互不不同的值
• 若左子树非空，则左子树上所有结点的值均小于根结点的值
• 若右子树非空，则右子树上所有结点的值均大于根结点的值
• 左、右子树也是是一棵二叉查找树

ADT

• Objects : A finite ordered list with zero or more elements.
• Operations :
• SearchTree MakeEmpty( SearchTree T )
• Position Find( ElementType X, SearchTree T )
• Position FindMin( SearchTree T )
• Position FindMax( SearchTree T )
• SearchTree Insert( ElementType X, SearchTree T )
• SearchTree Delete( ElementType X, SearchTree T )
• ElementType Retrieve( Position P )

Implementations

1. Find

Position Find( ElementType X, SearchTree T )
{
 if ( T == NULL )
     return NULL;  /* not found in an empty tree */
    if ( X < T->Element )  /* if smaller than root */
        return Find( X, T->Left );  /* search left subtree */
    else
     if ( X > T->Element )  /* if larger than root */
         return  Find( X, T->Right );  /* search right subtree */
        else   /* if X == root */
         return  T;  /* found */
}

• \(T(N)=S(N)=O(d)\) where \(d\) is the depth of X

Iterative program :

Position Iter_Find( ElementType X, SearchTree T )
{
 while ( T )
 {
     if ( X == T->Element )
         return T;  /* found */
        if ( X < T->Element )
            T = T->Left; /*move down along left path */
        else
             T = T-> Right; /* move down along right path */
    }  /* end while-loop */
    return NULL;   /* not found */
}

1. FindMin

Position FindMin( SearchTree T )
{
 if ( T == NULL )
     return NULL; /* not found in an empty tree */
    else
        if ( T->Left == NULL ) return T;  /* found left most */
        else return FindMin( T->Left );   /* keep moving to left */
}

1. FindMax

Position FindMax( SearchTree T )
{
 if ( T != NULL )
     while ( T->Right != NULL )
         T = T->Right;   /* keep moving to find right most */
    return T;  /* return NULL or the right most */
}

1. Insert

SearchTree Insert( ElementType X, SearchTree T )
{
    if ( T == NULL ) /* Create and return a one-node tree */
    {
     T = malloc( sizeof( struct TreeNode ) );
     if ( T == NULL )
         FatalError( "Out of space!!!" );
     else
     {
         T->Element = X;
         T->Left = T->Right = NULL;
     }
    }  /* End creating a one-node tree */
    else  /* If there is a tree */
         if ( X < T->Element )
         T->Left = Insert( X, T->Left );
     else
         if ( X > T->Element )
             T->Right = Insert( X, T->Right );
     /* Else X is in the tree already; we'll do nothing */
    return  T;   /* Do not forget this line!! */
}

• 内存越界后不会马上报错，在下一次free或malloc时会失败
• Handle duplicated keys

• \(T(N)=O(d)\)

• Delete

• Delete a leaf node : Reset its parent link to NULL

• Delete a degree 1 node : Replace the node by its single child
• Delete a degree 2 node : 用左子树最大值结点或右子树最小值结点替换

SearchTree Delete( ElementType X, SearchTree T )
{
 Position TmpCell;
    if ( T == NULL ) Error( "Element not found" );
    else if ( X < T->Element )  /* Go left */
     T->Left = Delete( X, T->Left );
    else if ( X > T->Element )  /* Go right */
     T->Right = Delete( X, T->Right );
 else  /* Found element to be deleted */
     if ( T->Left && T->Right ) {  /* Two children */
     /* Replace with smallest in right subtree */
         TmpCell = FindMin( T->Right );
         T->Element = TmpCell->Element;
         T->Right = Delete( T->Element, T->Right );  } /* End if */
     else
     {  /* One or zero child */
         TmpCell = T;
         if ( T->Left == NULL ) /* Also handles 0 child */
             T = T->Right;
         else if ( T->Right == NULL )
             T = T->Left;
         free( TmpCell );
      }  /* End else 1 or 0 child */
      return  T;
}

• \(T(N)=O(d)\)

Note : If there are not many deletions, then lazy deletion may be employed: add a flag field to each node, to mark if a node is active or is deleted. Therefore we can delete a node without actually freeing the space of that node. If a deleted key is reinserted, we won’t have to call malloc again.

1. Average-Case Analysis

2. The average depth over all nodes in a tree is \(O(logN)\) on the assumption that all trees are equally likely.

3. 将\(n\)个元素存入二叉搜索树，树的高度将由插入序列决定

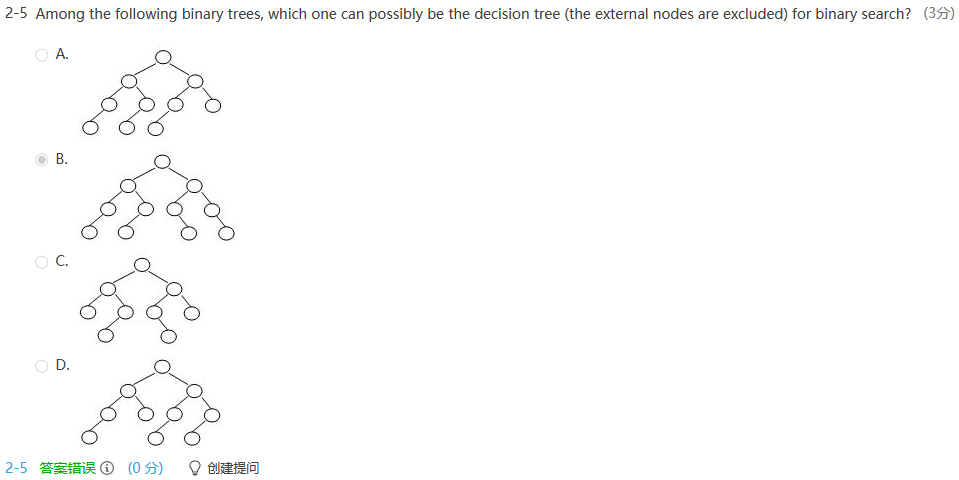

The correct answer is A.

---
