WEEK 1

1 Algorithm Analysis

[Definition] An algorithm is a finite set of instructions that, if followed, accomplishes a particular task. In addition, all algorithms must satisfy the following criteria.

1. Input : There are zero or more quantities that are externally supplied.

2. Output : At least one quantity is produced.

3. Definiteness : Each instruction is clear and unambiguous.

4. Finiteness : the algorithm terminates after finite number of steps

5. Effectiveness : basic enough to be carried out ; feasible

6. A program does not have to be finite. (eg. an operation system)

7. An algorithm can be described by human languages, flow charts, some programming languages, or pseudocode.

[Example] Selection Sort : Sort a set of \(n\geq1\) integers in increasing order

for (i = 0; i < n; i++){
    Examine list[i] to list[n-1] and suppose that the smallest integer is at list[min];
    Interchange list[i] and list[min];
}

---

1.1 What to Analyze

• Machine and compiler-dependent run times.

• Time and space complexities : machine and compiler independent.

• Assumptions:

1. instructions are executed sequentially 顺序执行

2. each instruction is simple, and takes exactly one time unit

3. integer size is fixed and we have infinite memory

• \(T_{avg}(N)\, and\, T_{worst}(N)\) : the average and worst case time complexities as functions of input size \(N\)

[Example] Matrix addition

void add(int a[][MAX_SIZE],
         int b[][MAX_SIZE],
         int c[][MAX_SIZE],
         int rows, int cols)
{
    int i, j;
    for (i=0; i<rows; i++)/*rows+1*/
        for (j=0;j<cols;j++)/*rows(cols+1)*/
            c[i][j] = a[i][j]+b[i][j];/*rows*cols*/
}

\[ T(rows, cols) = 2rows\times cols + 2rows+1 \]

• 非对称

[Example] Iterative function for summing a list of numbers

float sum (float list[], int n)
{  /*add a list of numbers*/
    float tempsum = 0; /*count = 1*/
    int i;
    for (i=0; i<n; i++)
        /*count++*/
        tempsum  += list[i]; /*count++*/
    /*count++ for last excutaion of for*/
   return tempsum; /*count++*/
}

\[ T_{sum}(n)=2n+3 \]

[Example] Recursive function for summing a list of numbers

float rsum (float list[], int n)
{/*add a list of numbers*/
    if (n) /*count++*/
        return rsum(list, n-1) + list[n-1];
        /*count++*/
    return 0; /*count++*/
}

\[ T_{rsum}(n)=2n+2 \]

But it takes more time to compute each step.

---

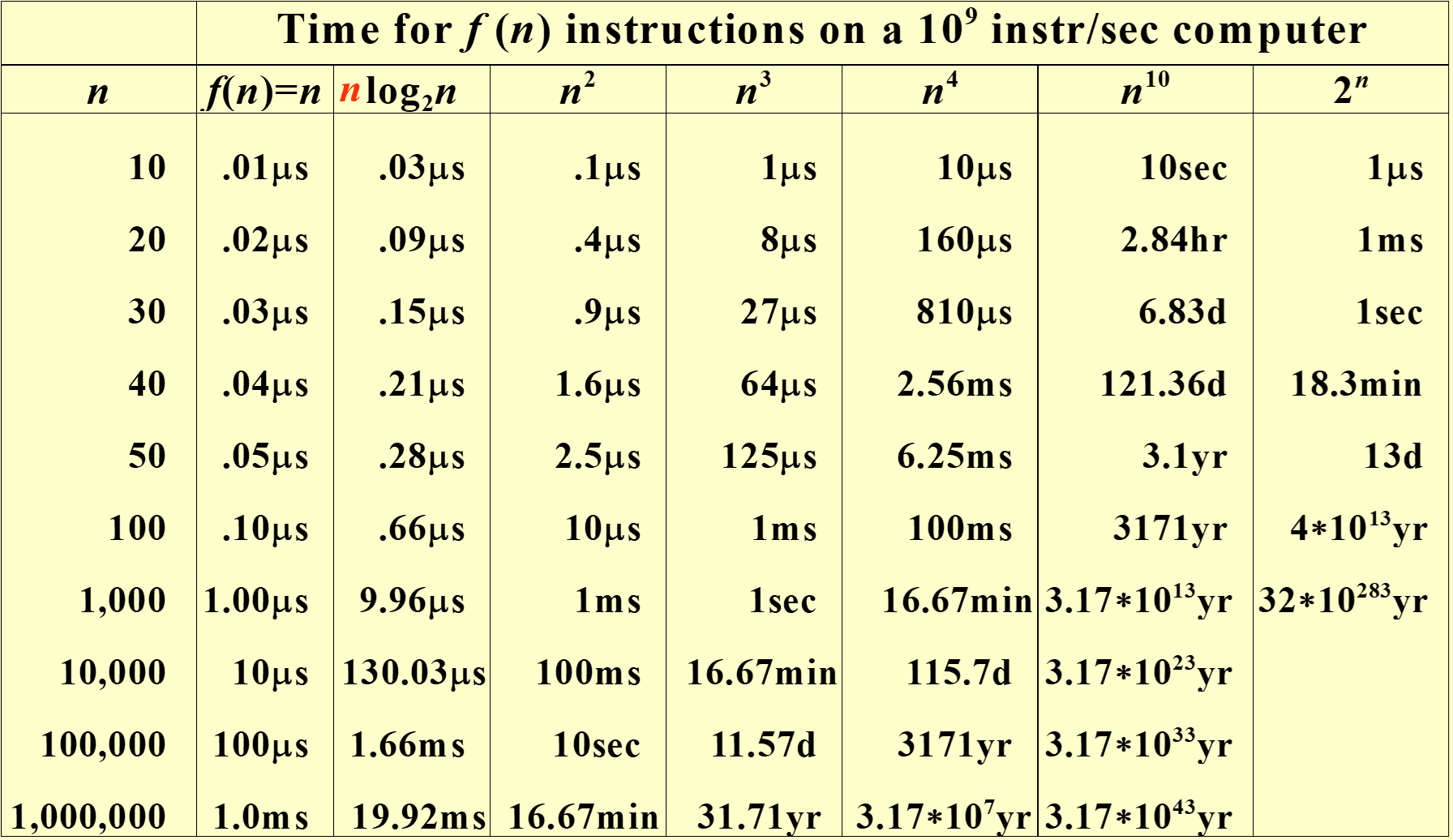

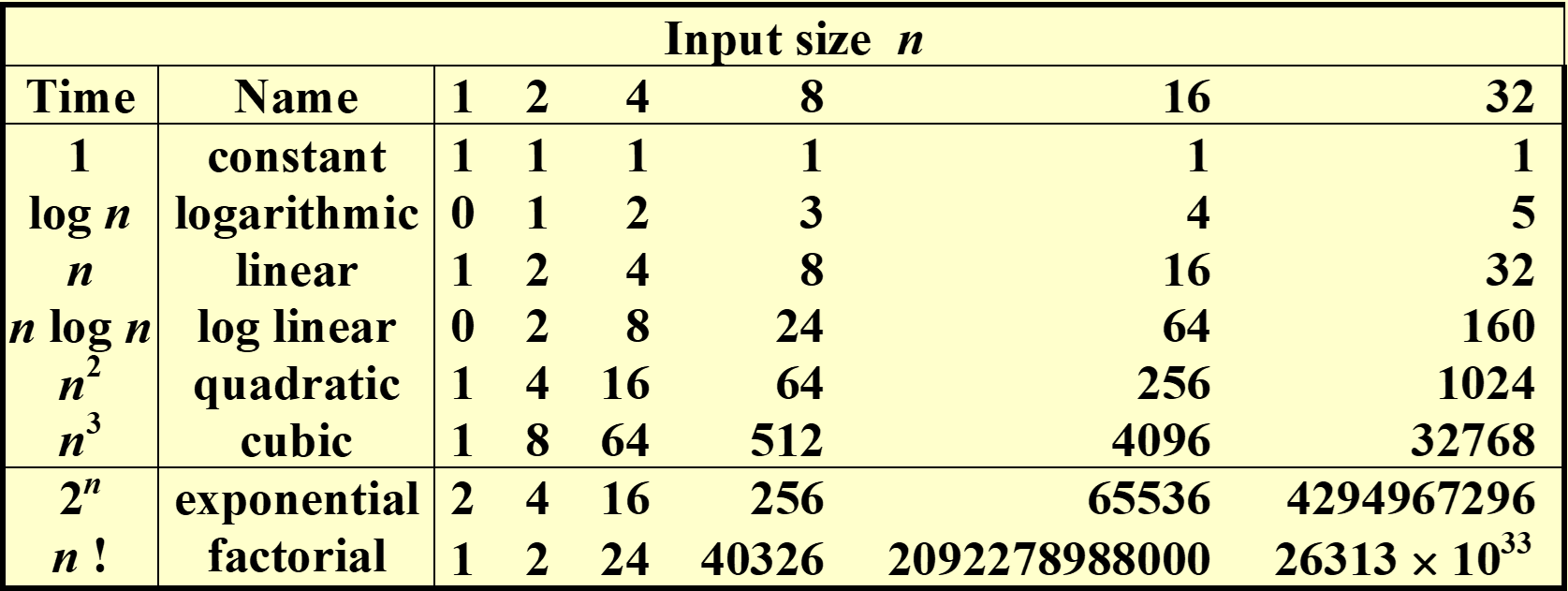

1.2 Asymptotic Notation(\(O,\Omega,\Theta,o\))

• predict the growth ; compare the time complexities of two programs ; asymptotic(渐进的) behavior

[Definition] \(T(N)=O(f(N))\) if there are positive constants \(c\) and \(n_0\) such that \(T(N)\leq c\cdot f(N)\) for all \(N\geq n_0\).(upper bound)

[Definition] \(T(N)=\Omega(g(N))\) if there are positive constants \(c\) and \(n_0\) such that \(T(N)\geq c\cdot f(N)\) for all \(N\geq n_0\).(lower bound)

[Definition] \(T(N)=\Theta(h(N))\) if and only if \(T(N)=O(h(N))\) and \(T(N)=\Omega(h(N))\).

[Definition] \(T(N)=o(p(N))\) if \(T(n)=O(p(N))\) and \(T(N)\neq\Theta(p(N))\).

• \(2N+3=O(N)=O(N^{k\geq1})=O(2^N)=\ldots\) take the smallest \(f(N)\)

• \(2^N+N^2=\Omega(2^N)=\Omega(N^2)=\Omega(N)=\Omega(1)=\ldots\) take the largest \(g(N)\)

• Rules of Asymptotic Notation

1. If \(T_1(N)=O(f(N))\) and \(T_2=O(g(N))\), then

(1) \(T_1(N)+T_2(N)=max(O(f(N)),O(g(N)))\)

(2) \(T_1(N)*T_2(N)=O(f(N)*g(N))\)

1. 若\(T(N)\)是一个\(k\)次多项式，则\(T(N)=\Theta(N^k)\)

2. \(log_kN=O(N)\) for any constant \(k\) (logarithms grow very slowly)

[Example] Matrix addition

void add(int a[][MAX_SIZE],
         int b[][MAX_SIZE],
         int c[][MAX_SIZE],
         int rows, int cols)
{
    int i, j;
    for (i=0; i<rows; i++)
        for (j=0;j<cols;j++)
            c[i][j] = a[i][j]+b[i][j];
}

\[ T(rows,cols)=\Theta(rows\cdot cols) \]

General Rules

• For loops : The running time of a for loop is at most the running time of the statements inside the for loop (including tests) times the number of iterations.

• Nested for loops : The total running time of a statement inside a group of nested loops is the running time of the statements multiplied by the product of the sizes of all the for loops.

• Consecutive statements : These just add (which means that the maximum is the one that counts).

• If/else : For the fragment if ( Condition ) S1; else S2;

The running time is never more than the running time of the test plus the larger of the running time of S1 and S2.

• Recursions :

[Example] Fibonacci number $$ Fib(0)=Fib(1)=1, Fib(n)=Fib(n-1)+Fib(n-2) $$

lont int Fib (int N) /*T(N)*/
{
    if (N<=1) /*O(1)*/
        return 1; /*O(1)*/
    else
        return Fib(N-1)+Fib(N-2);
}      /*O(1)*//*T(N-1)*//*T(N-2)*/

$$ T(N)=T(N-1)+T(N-2)+2\geq Fib(N)\ \left(\frac{3}{2} \right)^n\leq Fib(N)\leq\left(\frac{5}{3}\right)^n $$

时间复杂度：\(O(2^N)\) \(T(N)\) grows exponentially

空间复杂度：\(O(N)\)

\(O(N)\)

\(O(N)\)

\[T(N)\]
